Scope Electronics Kit – E-11 Blaster
£32.50 – £42.50
The (SCTroniX) Scope Electronics Kit – E-11 Blaster brings your 3D Printed E-11 Blaster Scope to life with an animated reticle and red dot laser.
This Scope Electronics Kit was designed to fit inside the E-11 Stormtrooper Blaster STL Files.
The Scope Electronics Kit is available as a Self Build Kit or a Pre-Built Kit
Scope Electronics Kit – E-11 Blaster Connections Guide.
Download Connections Guide
Scope Electronics Kit – E-11 Blaster
This (SCTroniX) Scope Electronics Kit is designed for the E-11 Stormtrooper Blaster STL Files.
You can fit the Scope Electronics Kit on it’s own or incorporate it it with the E-11 Blaster Electronics Kit
This Electronics Kit is available as either a Self Build Kit or a Pre-Built Kit.
Self Build Kit: You will need to solder both the switches, resistors, OLED Display and Laser LED using the included JST Leads to the Nano V3.0 SuperMini Microcontroller.
Pre-Built Kit: All components are pre-soldered to the Nano V3.0 Super Mini so you just need to fit inside the scope and connect the power supply.
There is quite a bit os soldering required for the Self Build kit so some soldering skills will be required.

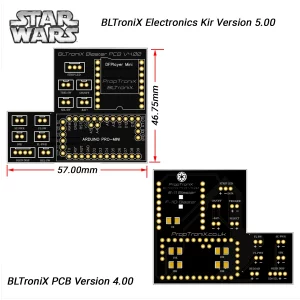

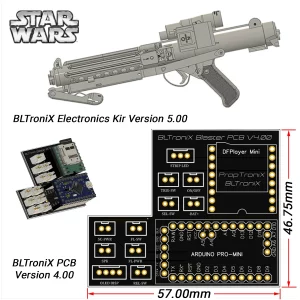

If using the Scope Electronics Kit with the E-11 Blaster Electronics Kit, the scope power lead connects directly to the BLTroniX E-11 PCB (SC PWR)
or if you are just fitting the Scope Electronics Kit you connect it directly to a suitable battery.
I recommend using the following battery:
Battery Model: 18650 Li-Ion battery
Battery Size: 18mm x 65mm
These are readily available on eBay, Amazon and AliExpress.
Scope Functions – E-11 Blaster:
There are 2 buttons:
- Button 1: Changes the scope display between 7 different animated displays.
- Button 2: Switches the Red Dot Laser LED On/Off.
Scope Electronics Kit – E-11 Blaster includes the following components:
- 1 x Nano V3.0 SuperMini Microcontroller – pre-programmed with the SCTroniX Scope code
- 1 x 0.49″ OLED Display Module
- 1 x 3V Red Dot Laser LED x 1 (Red Dot Laser Sight)
- 2 x 6mm x 6mm 2-Pin Tactile Switches – Change Display and Laser LED On/Off
- 1 x 4-Pin Micro JST 1.25 Male and Female Lead – OLED Display
- 2 x 3-Pin Micro JST 1.25 Male and Female Lead – Change Display and Laser On/Off Switches
- 1 x 2-Pin Micro JST 1.25 Male and Female Lead – Laser Power
- 1 x 2-Pin JST PH2.0 Lead – Scope Power to Blaster PCB (SC PWR)
- 2 x 10K Resistors – Scope Switches
Very Important: Please make sure you double check the polarity of all connections before attaching any power.
Please Note: DIY electronics are meant for those with basic electrical knowledge and soldering skills.
DIY electronic self build or part built kits do not include lead wires.
Before placing your order, please make sure you are fully aware of the Shipping Policy.
Electronics Guide
Scope Electronics Kit Connections Guide - E-11 Blaster
Video
The 3D Printed E-11 Scope with electronics fitted
| Please Select Kit Type | Self Build Kit, Pre-Built Kit |
|---|
