Star Wars E-11 Stormtrooper Blaster STL Files

ANH Version – From the first movie ‘A New Hope’

STL files to 3D print your very own Star Wars ANH Stormtrooper E-11 Blaster.

90+ Parts to 3D Print

Please Note: A 3D Printer is required to print the STL files.

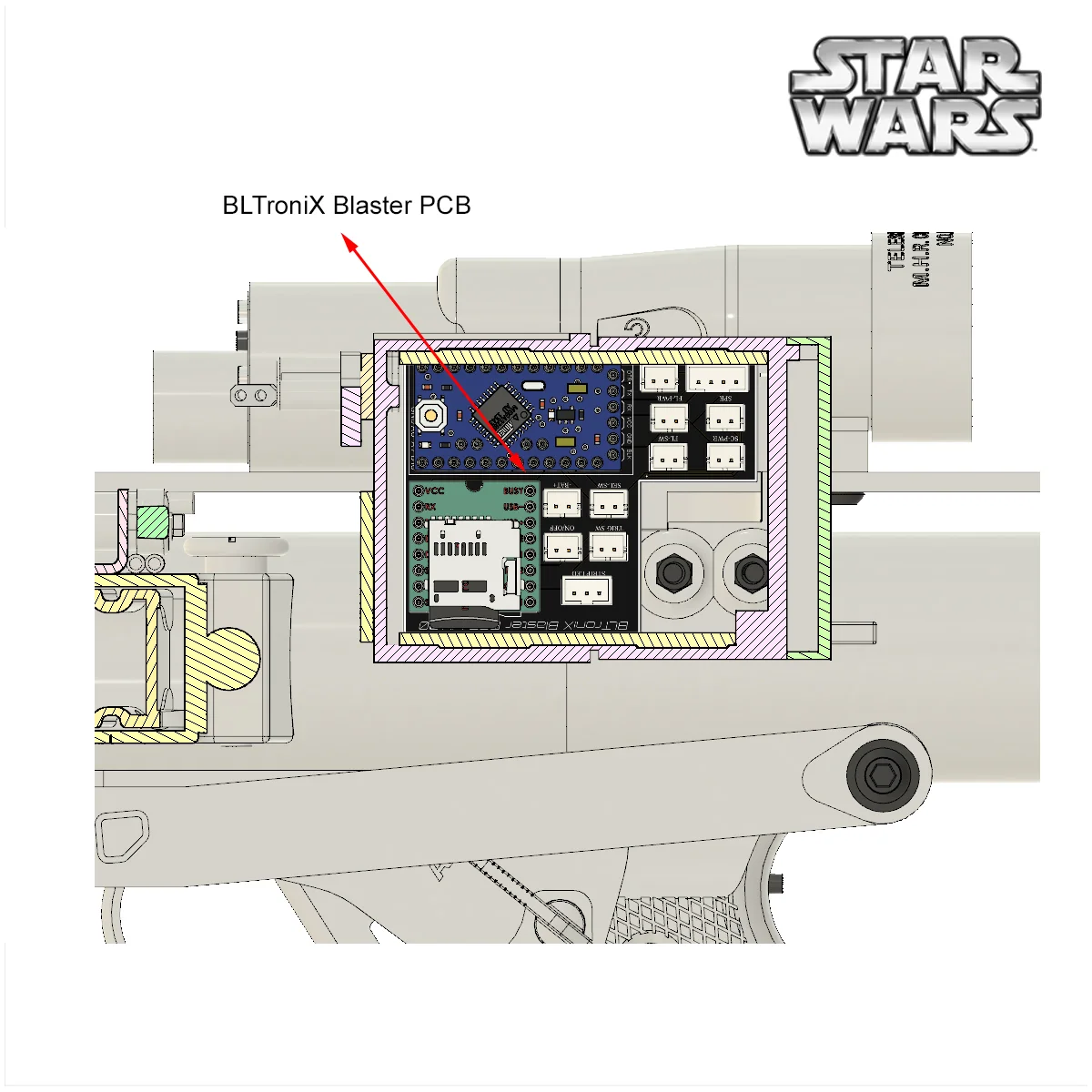

These STL files were designed by me to hold my BLTroniX E-11 Blaster Electronics Kit, or could just be 3D printed and displayed as a Static Prop.

All the images are image captures of the STL files from my 3D design software.

File Download Includes:

• STL Files
• STEP Files
• Instruction Guide

Functional Parts:

• Trigger
• Magazine Eject Button
• Removable Magazine
• Folding Stock
• Barrel End Cap Lock

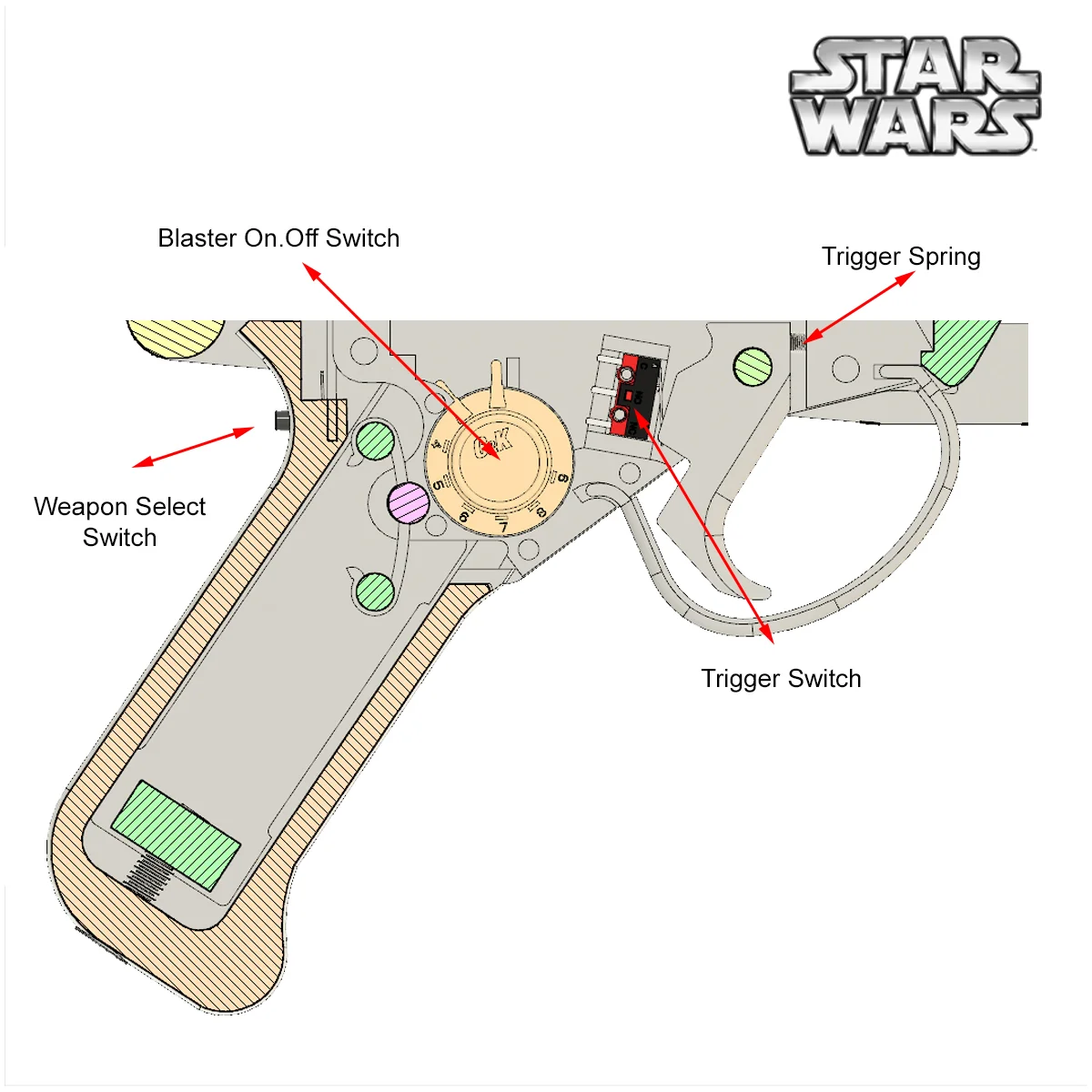

• Selector Switch (Turns the Blaster On/Off if the electronics kit is installed)
• Uses real screws and springs to give a much more realistic look and feel.

Required Hardware List:

• 1 x M6 x 20mm Hex Screw – Grip to Grip Inner
• 1 x M6 x 10mm Nut – Grip to Grip Inner
• 2 x M5 x 16mm Hex Screw – Muzzle Bolts
• 2 x M5 x 12mm Flanged Button Head Screw – Folding Stock Pivot
• 1 x M4 x 8mm Button Head Screw – Scope Rear Mount to Scope Rail
• 1 x M4 x 5mm Grub Screw – Barrel Front End to Barrel Front
• 2 x M3 x 12mm Button Head Screw – Hengstler to Scope Rail
• 1 x M3 x 8mm Button Head Screw – Scope Rail to Rear Sight
• 4 x M3 x 6mm Flanged Button Head Screw – Folding Stock
• 2 x M2.5 x 10mm Screw – Scope Front Mount to Scope Rail
• 1 x Spring – 0.4mm x 4mm x 35mm – Folding Stock Plunger
• 1 x Spring – 0.4mm x 4mm x 20mm – Magazine Release Button Spring
• 1 x Spring – 0.4mm x 4mm x 10mm – Barrel End Lock
• 1 x 1.5mm Brass Rod x 12mm – Barrel End Lock Hinge
• 3 x M2.5 x 6mm Cheese Head Screws – Scope Front
• 2 x 4mm x 3mm Neodymium Magnet – Scope Display Holder
• 1 x Square of Transparent Red Acrylic Sheet – For Scope Lens
• 1 x 30mm Round Glass Cabochon – Scope Lens

Sugested Printer Settings:

Layer Height: 0.2mm

Top/Bottom Layers: Minimum of 3 layers top and bottom recommended

Walls: Minimum 3 walls minimum recommended

Infill: 20% infill minimum recommended (maximum 40%)

This product is a digital download in zipped format. You will need to log into your account to access the download once your order is complete.

This 3D printed model is not guaranteed to be 100% screen accurate.
