E-11 Stormtrooper Blaster Electronics Kit

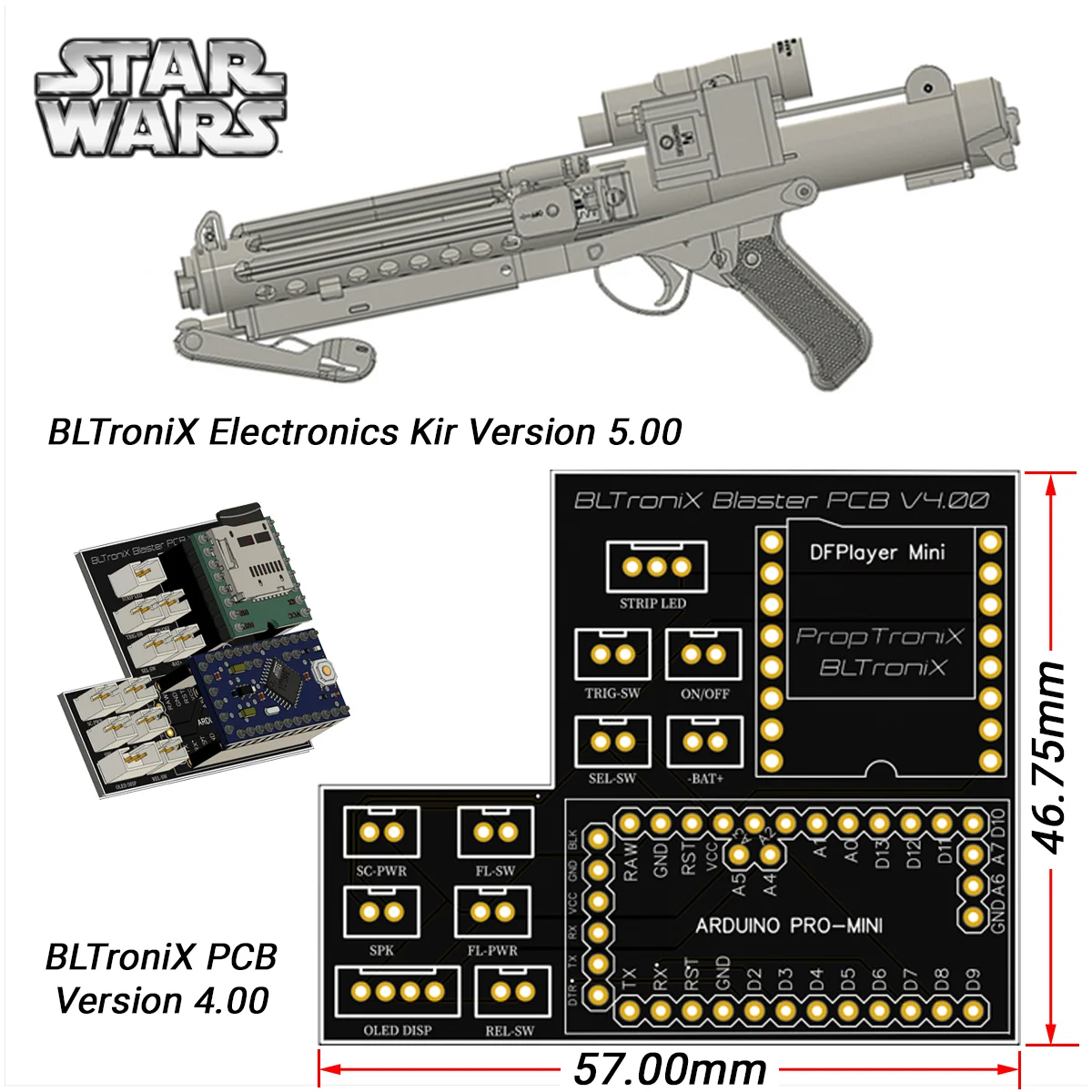

The E-11 Stormtrooper Blaster Electronics Kit is designed to fit in the my E-11 Stormtrooper Blaster STL Files.

This Electronics Kit is only available as a Part Built Kit.

Part Built Kit: It has headers for the Arduino Pro Mini, DFPlayer Mini pre soldered to the PCB along with all the JST sockets, resistors & transistor.

So you just need to solder the JST leads to the switches, OLED display, speaker etc. (So some soldering skills are required)

The only component you need to supply is a suitable battery.

I recommend using the following battery:

Battery Model: 18650 Li-Ion battery
Battery Size: 18mm x 65mm

These are readily available on eBay, Amazon and AliExpress.

E-11 Blaster Weapon Display Options:

You can choose between the following OLED Display colours for the Hengstler.

• White
• Blue
• Yellow

Please select which colour you would like before adding the kit to the basket or checking out.

E-11 Blaster Functions:

• Trigger: Plays selected weapon sound and also triggers the barrel LED strips and barrel end fire LED
• Select Button: Select one of 10 different weapons, Selection of Theme Tunes and Various Stormtrooper Phrases
  • 1. E-11 Blaster
  • 2. Stun Blaster
  • 3. AT-AT
  • 4. Boba Flame
  • 5. Bowcaster
  • 6. X-Wing
  • 7. Tie Fighter
  • 8. .44 Magnum
  • 9. Mauser K98
  • 10.  UZI Machine Gun
  • 11. Theme Tunes
  • 12. Stormtrooper Phrases
• Reload Button: Reloads the selected weapon
• Scope Button: Turns the Scope display on/off (if the E-11 Scope Kit is fitted)

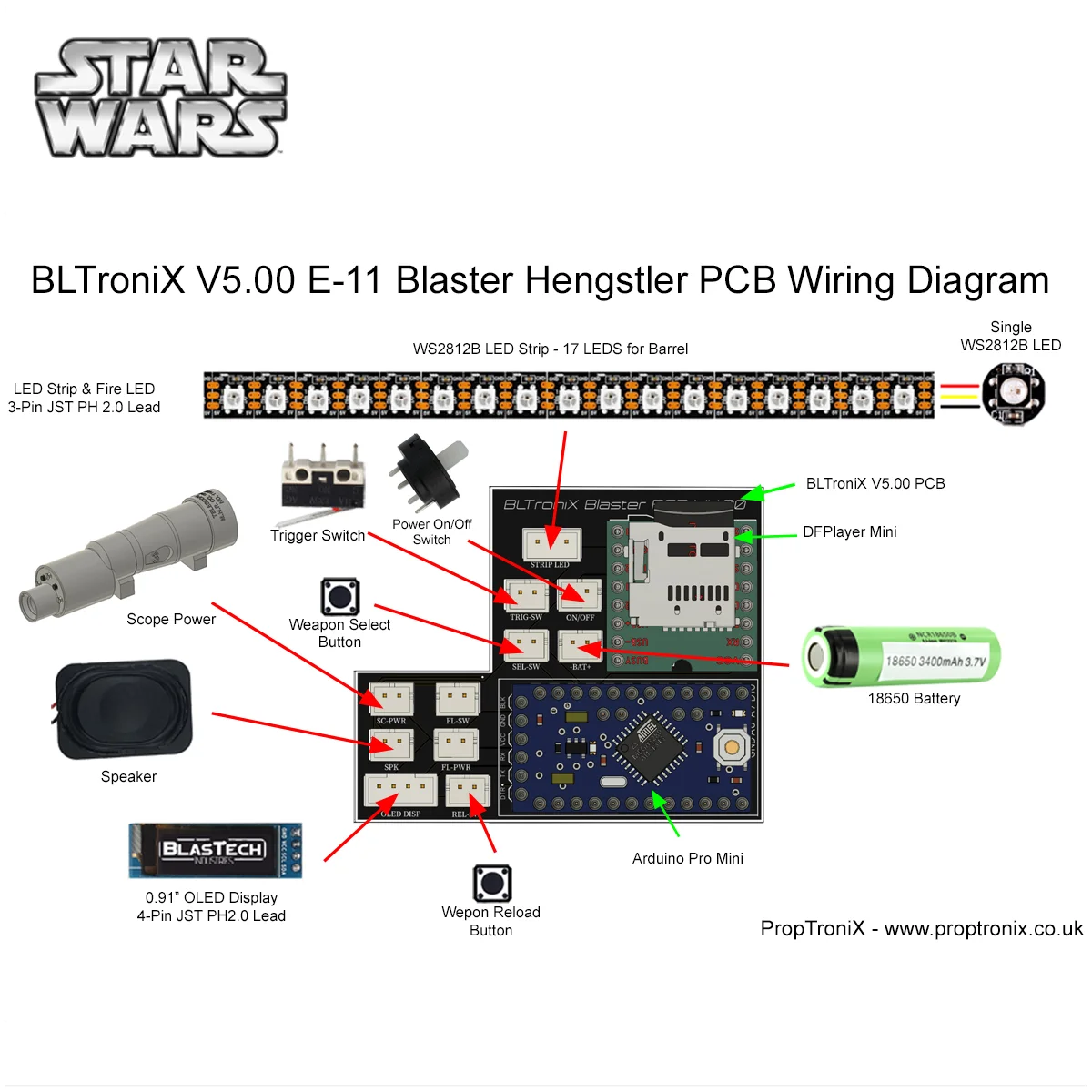

The E-11 Stormtrooper Blaster Electronics Kit includes the following components:

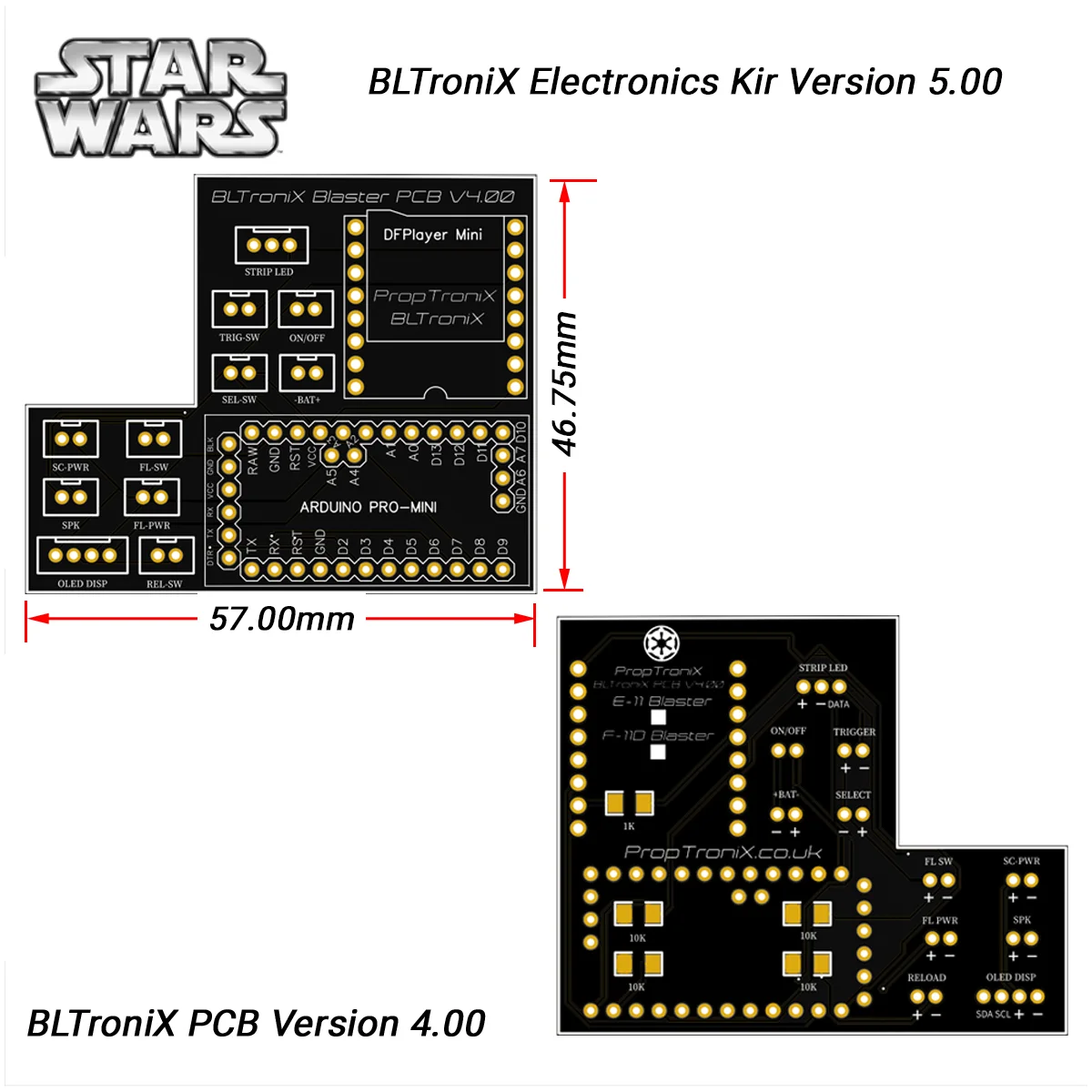

• BLTroniX Blaster PCB Board with all resistors, sockets and headers pre-soldered
• Arduino Pro Mini Micro Controller pre-programmed with the BLTroniX E-11 Stormtrooper Blaster Code
• DFPlayer Mini MP3 Player
• Micro SD-Card with the Sounds Pre-Loaded
• Speaker
• 0.91″ OLED Display (Choice of Screen Display Colour, White, Yellow or Blue)
• Double Sided Sticky Pad (To hold the 0.91″ OLED in place in the Hengstler Counter)
• Micro Lever Switch (Trigger)
• Mini On/Off Slide Switch (Blaster Power)
• 6 x 6mm Momentary Tactile Switch (Weapon Select and Scope On/Off) x 2
• 6 x 4mm Momentary Tactile Switch (Hengstler – Weapon Reload)
• Single WS2812B LED (Fire LED)
• Strip of 17 WS2912B LEDs (Barrel LEDs)
• 4 Pin JST PH 2.0 Lead for the OLED Display
• 3 Pin JST PH 2.0 Lead for the LED Strip & Fire LED
• 2 Pin JST PH 2.0 Leads x 5 for Trigger, Weapon Select, Weapon Reload, Scope On/Off & Speaker
• PropTroniX 18650 Battery Holder (Battery Holder)
• TP4056 Battery Charge Board

Very Important: Please make sure you double check the polarity of all connections before attaching any power.

Please Note: DIY electronics are meant for those with basic electrical knowledge and soldering skills.
DIY electronic self build or part built kits do not include lead wires.
